HIGH PRESSURE MULTI POINT LUBRICATORS

PRODUCTS     I     AUTOMATIC LUBRICATION SYSTEMS     I     HIGH PRESSURE MULTI POINT LUBRICATORS

MEMOLUB® 350psi Series

Versatile automatic lubrication systems, made simple.

The MEMOLUB® 350psi High Pressure series of reusable lubricators from Power Lube Industrial deliver precise lubrication at a higher output pressure than their EM and ONE counterpart. It is the benefit of versatility that offers opportunity for more creative and possibly remote applications of this system to a variety of industrial applications.

Extra pressure means this lubrication solution is:
  • Ideal to install over a greater distance
  • Customizable via addition of progressive distribution valves
  • Scalable from single line units to a centralized multipoint system

A variety of external power options make these systems more customizable and flexible from simple to unique requirements.

Learn More

MEMOLUB® HPS – Certified ATEX-EX Zone 22

For operations that demand the benefits of automatic lubrication at a low cost, the MEMOLUB® HPS family of products from Power Lube Industrial offers a programmable and scalable solution. As a diverse electromechanical lubricator, the MEMOLUB® HPS can be installed on a single lube point or scaled into a centralized system via progressive distribution valves to lubricate from 2 to 12 critical wear points.

  • Completely self contained automatic lubricator
  • Reusable pump – low cost replaceable lube cartridges
  • 52 programmable duration settings
  • Battery powered – no wiring needed
  • 2 year lubricator warranty

Seven basic frequency settings make the MEMOLUB® HPS suitable for most industrial applications.  Units are programmed by installing one or a combination of the three colored timing rings into the ring holder attached to the brass fitting. The MEMOLUB® lubricator screws onto the brass fitting and the timing rings depress the switches on the bottom of the lubricator activating the lubricator program.

Battery, Externally or PLC powered models available
Operating pressure: 50psi
Drive type: 4.5VDC Alkaline battery pack or External 24VDC
Remote installation: 30 feet (10 meters)
Lubricant Volume: 120cc, 240cc, 480cc oil or grease up to NLGI #2
Temperature range: 5°F to 120°F (-15°C to 50°C)
Warranty: 2 years

Learn More

MEMOLUB® EPS – External Power Source

When industrial applications require lubrication during machine operation, the MEMOLUB® EPS from Power Lube Industrial is an excellent solution. Best applied to intermittent use applications, the solution is an externally powered electromechanical lubricator that can be installed for a single critical wear point or scaled into a central two to twelve point system with progressive distribution valves.

This lubrication solution is:
  • Ideal for intermittently used equipment
  • Externally powered – 24VDC
  • Power supplies to accept 110VAC, 12VDC, or 4.5VDC
  • Easy MEMO programming with 42 output settings

A 12″ wire lead connects the MEMOLUB® EPS to an external power source. A 24VDC power supply is available to the unit during machine operation. This power supply initiates a lubrication cycle, and executes a lubrication program until power is removed.

Battery, Externally or PLC powered models available
Operating pressure: 50psi
Drive type: 4.5VDC Alkaline battery pack or External 24VDC
Remote installation: 30 feet (10 meters)
Lubricant Volume: 120cc, 240cc, 480cc oil or grease up to NLGI #2
Temperature range: 5°F to 120°F (-15°C to 50°C)
Warranty: 2 years

Learn More

MEMOLUB® PLCd/2 – PLC Powered and Programmed

When maintenance teams of industrial operations seek complete control over a lubrication program, the MEMOLUB 24VDC-PLCd-Control model electromechanical lubricator from Power Lube Industrial is the ultimate in single or multi-point lubrication.

Distribute lubricant based on machine cycles, production counts, elapsed clock hours, or other customized operational demands.

This lubrication solution is:
  • Ideal for OEM applications
  • Ideal for OEM applications
  • Externally powered – 24VDC
  • Easy lubricant cartridge change outs

These units are best utilized by PLC controlled machinery and have 120, 240, and 480cc capacities. MEMOLUB® PLCd/2 features Power-Through MEMO control and is connected to a PLC controlled power supply via a five foot extension cable.

Battery, Externally or PLC powered models available
Operating pressure: 50psi
Drive type: 4.5VDC Alkaline battery pack or External 24VDC
Remote installation: 30 feet (10 meters)
Lubricant Volume: 120cc, 240cc, 480cc oil or grease up to NLGI #2
Temperature range: 5°F to 120°F (-15°C to 50°C)
Warranty: 2 years

Learn More

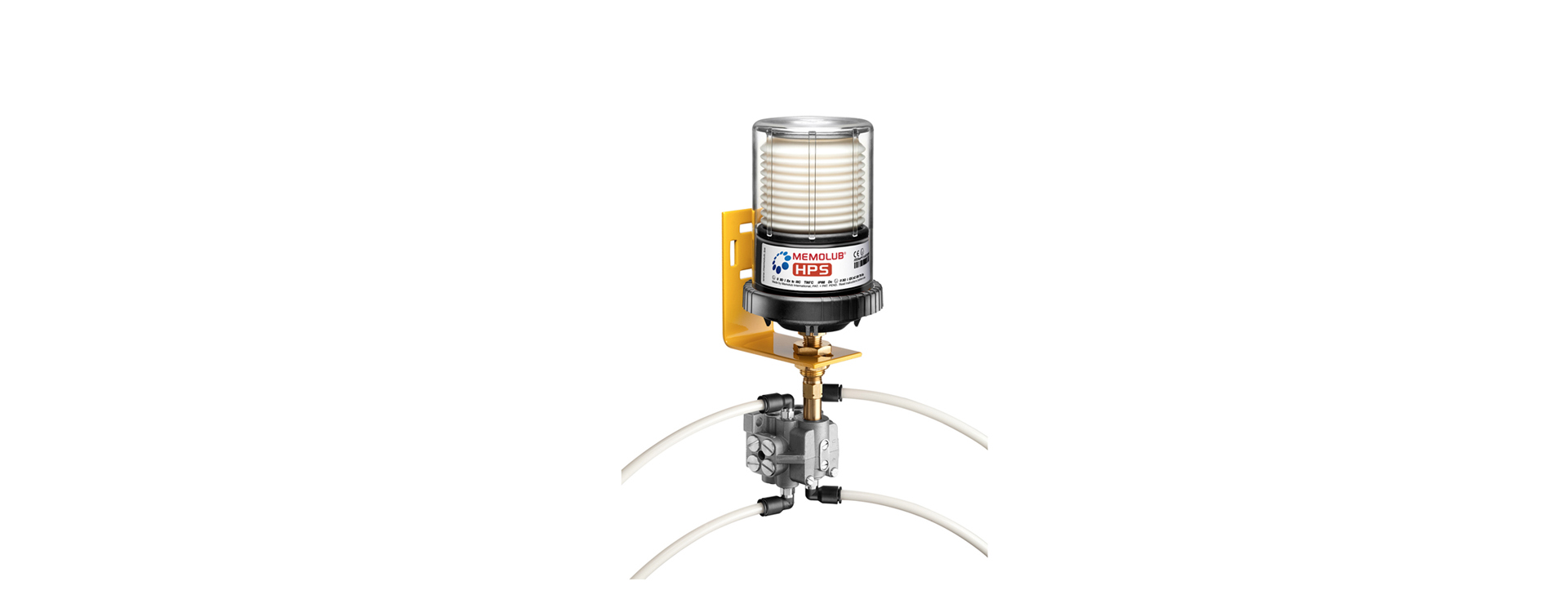

MEMOLUB® MPS Multi-Point Lubricator

For a more economical option to large centralized lubrication systems, Power Lube Industrial LLC offers the MEMOLUB® Multi-Point Lubricator system. From a centrally located lubricant reservoir, these flexible systems distribute a predetermined amount of lubricant to multiple critical wear points.

For applications that require a reliable, cost effective, but central automatic system, the MPS family leverages progressive distribution valves and the 350psi output pressure of the MEMOLUB HPS series of lubricators to form an economical and central automatic lubrication system.

The MEMOLUB® MPS lubricators come in a wide variety of options. Choose the power source and control options to your match your specific production requirements.

  • Ideal for multiple critical wear points in close proximity
  • Lubricate 2-12 wear points with one lubricator
  • More economical than larger central systems
  • Improve personnel safety by remote mounting for easy access
  • Battery, Externally or PLC powered models available

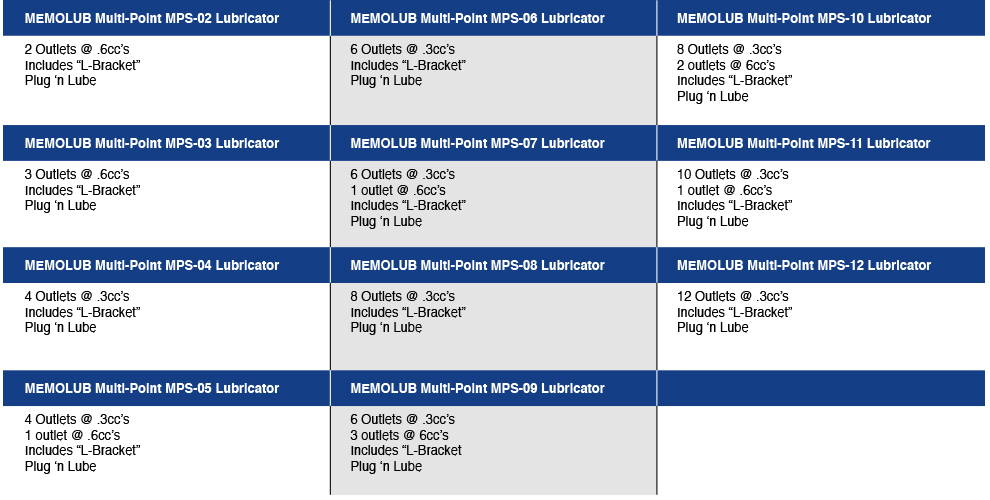

The MEMOLUB® MPS family of products includes:
